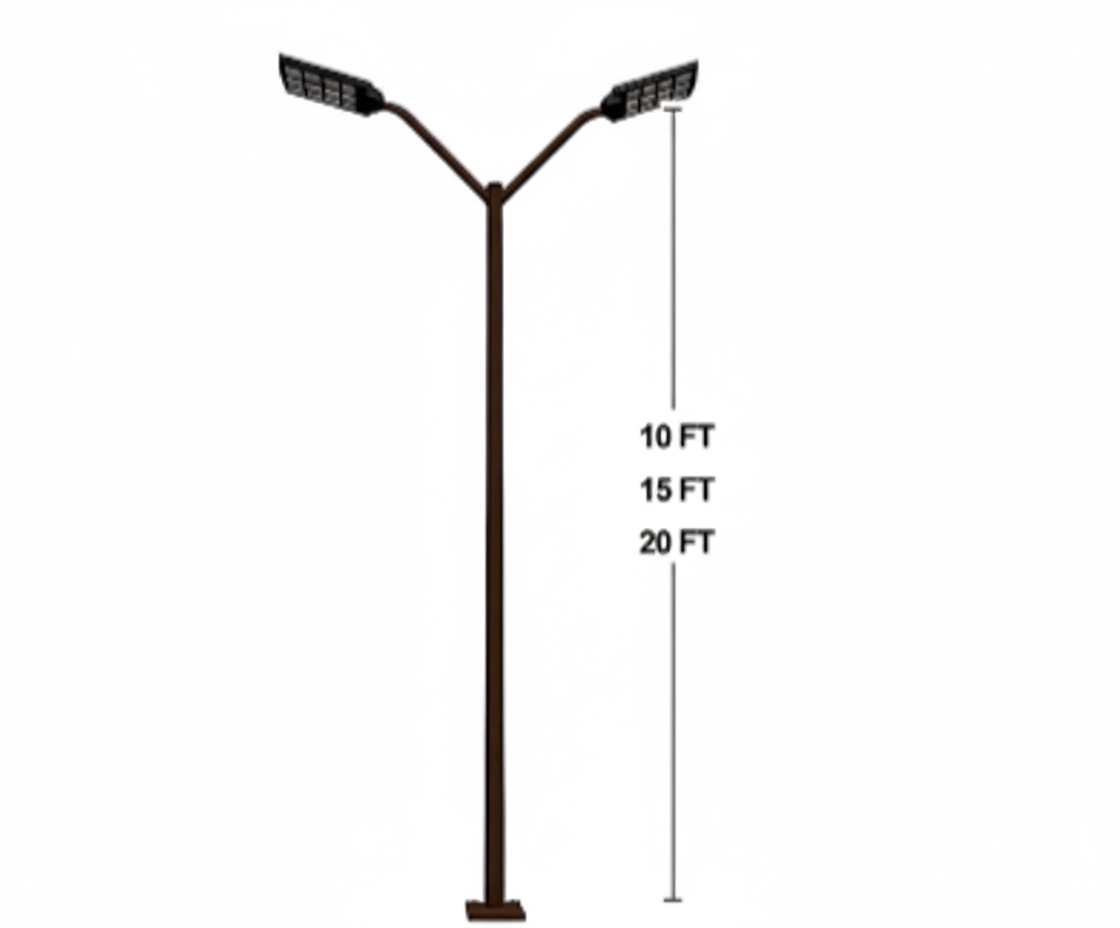

Double Arm Pole 10x3x3 DA21
$0.10$0.01
TECHNICAL SPECIFICATIONS
Approximate Weight: 34.5 Lbs
Material: Carbon Steel galvanized (ASTM A36)
Protection: Hot-dip galvanized, weather and corrosion resistant, with decorative resin-based paint.
Operating Temperature: -4F to 140F
Estimated Service Life: 15 to 20 years
Height: 10 FT
External Measurement: 3''x3''
Beam Thickness: 16 Gauge
Wind Resistance : 110 MPH
USE: Designed for Urban and rural applications such a as public lighting, signage, pedestrian lighting, or parking lot illumination.
Height, Thickness and diameter can be adjusted according to regulations or project requirements
It's an arm welded to the top of the square beam that not only completes the height but also adds a decorative touch to this beautiful pole. There are 2'' holes between the arm and the beam to facilitate wiring.
Compatible with LED, solar, and conventional luminaries.
Requires proper foundation or metal base fixation.
Can be manufactured with or without an access door.
